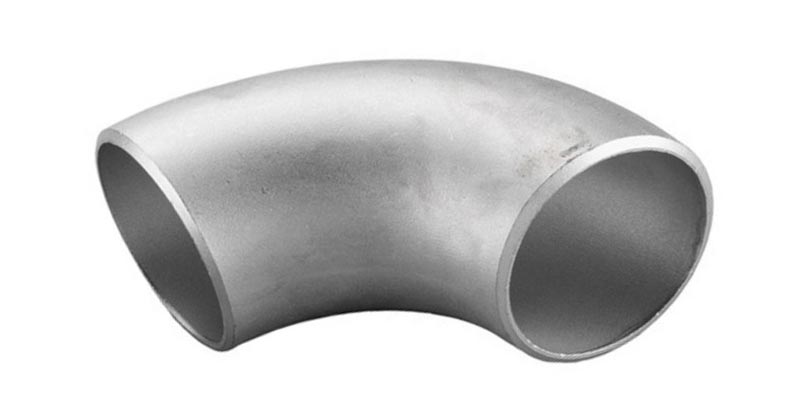

Pipe Elbow
Pipe Elbow
LONG RADIUS ELBOWS, SHORT RADIUS ELBOW, CARBON STEEL ELBOWS, STAINLESS STEEL ELBOW MANUFACTURER
Carbon Steel Elbows, Stainless Steel Elbows, Alloy Steel Elbows, Long Radius Elbows, Short Radius Elbows. 3D Elbows, 5D Elbows, Custom Radius Elbow Supplier in India, 316 Elbow, A234 WPB Elbows Manufacturer, A420 WPL6 Elbow, A234 WP11 Elbow, A234 WP5 Elbow, A403 WP304 Elbow, A403 WP304L Elbow, A403-WP316 Elbow, A403-WP316L Elbow, Seamless Elbows, Large Diameter Fabricated Elbows, 20″ NB Elbow,36″ NB Elbow Supplier, Buttweld Elbows Manufacturer, Duplex 2205 Pipe Elbow, 100% X-Ray Welded Elbows
Buttwelded Pipe Elbow Production Range
Outside Diameter: |
Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″) |
Wall Thickness: |
3mm – 40mm / SCH3, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Bending Radius: |
R=1D – 10D, 15D, 20D |
Product’s Angle: |
5° – 180° Elbows, 90° and 45° Long Radius Elbows, Long Radius Returns, Short Radius Elbows and Returns |
Value Added Services: |
Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
Production Grades: |
Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
Manufacturing Standards
ASME: |
ANSI B16.9, ANSI B16.28, MSS-SP-43 |
DIN: |
DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
EN: |
EN10253-1, EN10253-2 |
ASTM A403 – ASME SA403 |
Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
ASME B16.9 |
Factory-Made Wrought Fittings Buttwelding |
ASME B16.25 |
Buttwelding Ends |
ASME B16.28 |
Wrought Steel Short Radius Elbows and Buttwelding Returns |
MSS SP-43 |
Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
