Pipe Cross
Pipe Cross
MANUFACTURER/EXPORTER IN INDIA | ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43 MANUFACTURER/EXPORTER IN INDIA | ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43 CARBON, ALLOY, STAINLESS STEEL PIPE CROSS

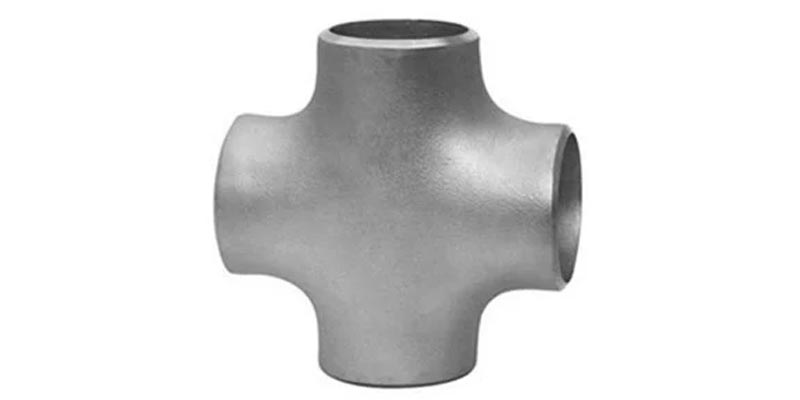

MMB Metal is a prominent manufacturer of stainless steel cross, carbon steel cross and alloy steel cross fittings, commonly known as a 4-way pipe fitting. Cross tee usually generates high stress on pipe as temperature changes, because they are at the center of four connection points. In comparison, a tee is steadier than a cross, as a tee behaves like a three-legged stool, while a cross behaves like a four-legged stool.
Butt Welded Pipe Cross Production Range
|
Outside Diameter: |
Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″) |
|
Types: |
Seamless, Welded, Equal Cross, Reducing Cross |
|
Wall Thickness: |
3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
|
Value Added Services: |
Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
|
Production Grades: |
Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
Manufacturing Standards– Pipe Cross
|
ASME: |
ANSI B16.9, ANSI B16.28, MSS-SP-43 |
|
DIN: |
DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
|
EN: |
EN10253-1, EN10253-2 |
|
ASTM A403 – ASME SA403 |
Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
|
ASME B16.9 |
Factory-Made Wrought Fittings Buttwelding |
|
ASME B16.25 |
Buttwelding Ends |
|
ASME B16.28 |
Wrought Steel Short Radius Elbows and Buttwelding Returns |
|
MSS SP-43 |
Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Pipe Cross Material Grades
|
Stainless Steel Pipe Cross |
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
|
Carbon Steel Pipe Cross |
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
|
Low Temperature Carbon Steel Pipe Cross |
ASTM A420 WPL3, A420 WPL6 |
|
Alloy Steel Pipe Cross |
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
|
Duplex Pipe Cross |
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
|
Nickel Alloy Pipe Cross |
ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) |
